CesTek Special modules for mobile robots

For a number of years, CesTek Automation has specialized in producing accessories for Omrons MObile RObots.

The modules, mounted on a mobile robot, increase the efficiency and capacity of your production.

Whether you are a mobile robot integrator or manufacturer, we sell the modules separately, so if you already have Omron robots in your production, you can simply buy the modules you want.
If you, as a manufacturer, are about to start implementing mobile robots in an existing production, then we can also help - we have the experience, and are always ready for a dialogue about the considerations and issues you have, in connection with the integration of one or more mobile robots in an existing environment.

On our YouTube channel you can see a selection of solutions that we have already provided to customers.

We know it is a big decision when the idea of changes in a production is considered, therefore the phone is always open and we are ready to help and answer questions large or small, on Phone :+45 3049 9050




REX 100 ▼

Lift for LD-60 / LD-90

  • Payload up to 100 kg.
  • Height 120 mm.
  • Lifting height 420 mm in 60 seconds.
  • Transport of boxes, trays, sacks etc.

Part number: 20082000 + 20082205 (Bellow Cover)

REX 1250LL▼

Lift for HD-1500

  • Payload up to 1250 kg
  • Height 135 mm
  • Lifting height 390 mm
  • Long life actuaters, guaranteeing the lift to work for many years.
  • Transport of boxes, trays, pallets or sacks etc.

Part number: 20091600 + 20090030 (Bellow Cover)

Cart 500▼

  • Cart Transporter for LD-250
  • Total weight 500 kg
  • Transport of boxes, pallets, sacks etc.

The LD-250 drives underneath the cart, hooks up to the cart and drives it to the designated position.

Option

  • Anti static wheels.
  • Top can be changed in order to fit the customer purpose, boxes, pallets etc.

Part number: 20106000

DOX 250 ▼

Cestek trolley coupling.

  • Made of solid materials that can withstand an industrial environment
  • Ensures an easy and reliable connection of mobile robot and cart
  • Can easily dock in and out of a cart with your mobile robot, take it with you and drop it off at a desired location

We supply both the unit for the robot and the number of top units for carts you need.

The trolley coupling is delivered incl. control box and drawings of interface.

Part number: Robot coupler 20110000 / Cart coupler 20110002

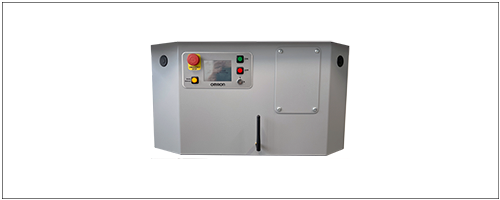

Cestek LD-250 Spacer ▼

Designed to match the body of the LD-250 at 100%. Standard height 420 mm. Has mounting plates for sidelasers, extra emergency stop bottons and blue light in front. Easy access hatch, for service inside the spacer.

  • Powder coated aluminium
  • 24 V IO controller
  • Available in variable height, minimum 150mm

Options

  • Extra emergency stop
  • PLC for advanced control and data processing
  • Sidelaser Kit

Part number: 423022-0003

MOMA ▼

CesTek Mobile Manipulator, ex. gripper

The Kit contains:

  • 1x LD-250

  • 1x Battery LD-250

  • 1 x CesTek Spacer for LD-250

  • 1 x TM-12

Option

  • Sidelasers

Part number: 423022-0004


cnv62f - CesTek double CONVEYOR Floor ▼

Mechanic

  • Steel frame
  • Steel rollers
  • Standard conveyor width 420 mm (per lane)

Electric

  • 24VDC Drum motor with speed control

or

  • 230 V Conveyor control

Option

  • Optional width
  • PUR-coated rollers
  • System control for subsequent conveyors

Part number: 423023-0001

startkit- Omron- LD250-CesTek.png

start kit OMron ld-250 ▼

LD-250 perfect for small but heavy unwieldy loads

  • Payload-capacity 250 kg
  • Speed 1.2 m/s

The Kit contains:

  • Omron LD-250
  • Docking station
  • Battery
  • Joystick

Part number: 37222-10004

Omron- HD1500-500x200.png

Add-on kit OMron Hd-1500 ▼

  • Payload-capacity 1500 Kg
  • Speed 1800 mm/s

The Kit contains

  • Omron HD-1500
  • Battery

Part number: HD-1500 37480-00000 / Battery 68330-000


Docking station oMRON HD-1500 ▼

The Kit contains:

  • Docking station
  • Battery power cable (0.45 m)

Part number: 68910-010


OMRON hmi 7'' ▼

The HMI panel contains a basic programming with screens and prepared interface for Omron PLC.

Package includes:

  • 230 VAC Supply ( must be modified )
  • Programmed for LD Control and PLC interface.
  • Mounted in small box on Conveyor

Varenummer: 423020-0000

rex 250c▼

Lift for LD-250

  • Payload up to 200 kg.
  • Height 215 mm.
  • Lifting height 490 mm.
  • Transport of boxes, trays, sacks, half pallets etc.

Part number: 20220000

HDX 35 C ▼

Lift for the larger HD-1500. Lifts your cargo to the desired height. Can be equipped with sideguides or a conveyor on top.

  • Payload up to 1200 kg
  • Lifting height 150 mm
  • Measurements H 90 mm x L 1324 mm x W 884 mm
  • Transport of pallets, sacks, boxes etc.

Options:

  • Sideguides
  • Top Conveyor CNV61R250

part number: 20072000

Pallet Stand for MD-650 and HD-1500▼

Generic pallet stand.

Working with HD-1500 or MD-650 - equipped with HDX 30-2 pallet lift. The pallet stand can also be serviced with a truck or electric pallet lifter The stands can be setup for both EUR pallets or US pallets.

  • Measures per leg, L 1280 mm x B 320 mm x H 400 mm (pallet platform H 340 mm)

Part number: ST 20201000 or WD 20201500

Sidelaser BOOM ▼

Boom for sidelaser mounting on LD-250 used with CesTek trolley coupling.

  • easy to install sidelasers when driving with carts on the LD-250.
  • Made up of solid materials that ensures a long life cycle and reliable safety measures on your mobile robot.

Option

  • Sidelaser and HMI can be purchased additionally.
  • Fits DOX250 but can be made in different widths adapted the application.

Part number: 20110003

Cnv61r - CESTEK SINGLE CONVEYOR ▼

  • CesTek Spacer
  • Conveyor with aluminium Chassis
  • Steel Rollers

Option

  • PUR-coated rollers

Part number: 423022-0000

cnv62r1500 ▼

CesTek single Conveyor for HD-1500, drum motor, spacer and electrical equipment. Conveyor has sensors for box detection built in.

Transport of EUR, US and half pallets

  • Length 1324 mm
  • Width 884 mm
  • Height 190 mm
  • Weight 150 kg

Option

  • PUR-coated rollers
  • Sidelasers
  • Lifting unit
  • Pallet stand
  • Weight measurements

Part number: 423022-0006


Start kit OMron LD-60/90 ▼

LD-60/90 designed for dynamically moving material in challenging environments

  • Payload-capacity 60 kg - 90 Kg
  • Speed 1.8m/s - 1.35m/s

The Kit contains:

  • Omron LD-60 or LD-90
  • Docking station
  • Battery
  • Joystick

Part number: LD-60 37032-10004 / LD-90 37042-10004

Omron- LD250-500x200.png

Add-on kit Omron ld-250 ▼

  • Payload-capacity 250 Kg
  • Speed 1.8m/s - 1.35m/s

The Kit contains:

  • Omron LD-250
  • Battery

Part number: 37222-00002


Docking station Omron LD-60/90 ▼

The Kit contains:

  • Docking station
  • Battery power cable (0.45 m)

Part number: LD-60 / LD-90 12477000.1


omron SIDE LASER KIT ▼

Mounted on each side of Spacer. Ensures LD does not drive into objects hanging out /down.

The Kit contains:

  • 2 x Laser
  • 1 x Cable
  • 2 x Mountingkit
  • 2 x Metal cover

Mechanic

  • 2 x CesTek Mechanical fittings

Part number:13456100.1

Cestek L-shape ▼

CesTek Triangle is mounted under track for optimized accuracy on Omron mobile robot.

  • CAPS licence needed
  • Sandblasted aluminium

Part number: 423021-0000

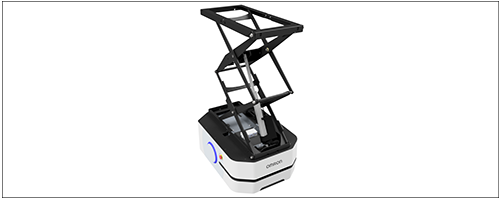

REX 250 M ▼

Lift for LD-250 transport of boxes, sacks, trays etc.

  • Payload up to 100 kg.
  • Measurements H 180 mm x L 943 mm x W 690 mm.
  • Lifting height 1060 mm.
  • Transport af kasser, bakker, sække m.m.

Lifts your cargo from the robot. Can have multiple stops on the way up. We can supply a customized top with side guides for boxes or conveyor for trays (See CNV61R)

Part number: 20085000

HDX 30-2 ▼

Pallet Lift for Omrons MD-650 and HD-1500.

Pallet Lift for the larger HD-1500. Lifts a pallet from a pallet stand. Drives it to the destination and delivers on another pallet stand.

  • Payload up to 1250 kg
  • Lifted height 150 mm
  • Measurements H 90 mm x L 1200 mm x W 161 mm (each leg)
  • Heavy payload transportation of pallets

Part number: 20050005

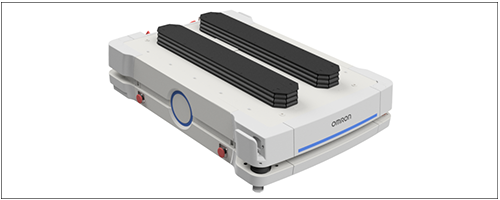

HDX 40E ▼

Pallet Lift for Omrons MD-650 and HD-1500.

Pallet Lift for the larger HD-1500. Lifts a pallet from a pallet stand. Drives it to the destination and delivers on another pallet stand.

  • Payload up to 1500 kg
  • Lifted height 150 mm
  • Measurements H 90 mm x L 1250 mm x W 190 mm (each leg)
  • Heavy payload transportation of pallets

Part number: 20070000

ELV 1000 Lift Station ▼

The lift station is designed to exchange pallets with mobile robot MD-650 equipped with HDX 30-2 pallet lift. The robot docks in the lift station, which can raise/lower the pallet from/to the floor.

Part number: 20150000

Automatic Pallet Station▼

The automatic pallet station is compatible with:

  • HD1500 - mobile robot
  • HDX 35 C - lift
  • HDX 40 E - lift
  • REX 1250 LL - lift
  • Mir600 - mobile robot
  • MIR1350 EU/US custom pallet lift
  • Payload 1250 kg
  • Measurements L 1400mm x W 1300 x H 450
  • weight 300 kg

Cestek LD-60/90 Spacer ▼

  • Powder coated aluminium
  • 24 V IO controller
  • Available in variable height, minimum 150mm

Options

  • Extra emergency stop
  • PLC for advanced control and data processing
  • Side Laser Kit

Part number: 423022-0002

cnv62r - CESTEK DOUBLE CONVEYOR ▼

  • CesTek Spacer
  • Conveyor with aluminium Chassis
  • Steel Rollers

Option

  • PUR-coated rollers

Part number: 423022-0001

cnv61r250 ▼

Cestek top with one conveyor with drum motor, spacer and electrical equipment. Conveyor has sensors for box detection built in.

  • CesTek Spacer
  • Conveyor with aluminium Chassis
  • Steel Rollers
  • Spacer can be between 150-800 mm heigh.
  • Standard height 800 mm to roller top.
  • Length 1050 mm
  • Width 720 mm
  • Width is 620 mm roller pitch 90 mm. (Option 420 and 820 mm conveyor)

Option

  • PUR-coated rollers
  • Sidelasers

Part number: 423022-0005


cnv61F - CesTek SINGLE CONVEYOR Floor ▼

Mechanic

  • Steel frame
  • Steel rollers
  • Standard conveyor width 420 mm

Electric

  • 24VDC Drum motor with speed control

or

  • 230 V Conveyor control

Option

  • Optional width
  • PUR-coated rollers
  • System control for subsequent conveyors

Part number: 423023-0000

Omron- LD60-LD90_500x200.png

Add-on kit Omron ld-60/ld-90 ▼

  • Payload-capacity 60 kg - 90 Kg
  • Speed 1.8m/s - 1.35m/s

The Kit contains:

  • Omron LD-60 or LD-90
  • Battery

Part number: LD-60 37032-10002 / LD-90 37042-10002

startkit- Omron- HD1500.png

start kit Omron hd-1500 ▼

HD-1500 makes it possible to automate larger tasksthat will traditionally be moved with forklift

  • Payload-capacity 1500kg
  • Speed 1800 mm/s

The Kit contains:

  • Omron HD-1500
  • Docking station
  • Battery
  • Joystick

Part number: HD-1500 37480-10004 / Battery 68330-000


Docking Station oMRON LD-250 ▼

The Kit contains:

  • Docking station
  • Battery power cable (0.45 m)

Part number: 12477000.1
